NPD1569 15.6″ Full HD Marine display with a full range of video interface options to suit all marine craft.

SKU: ETE970317-1 Category:

Download PDF

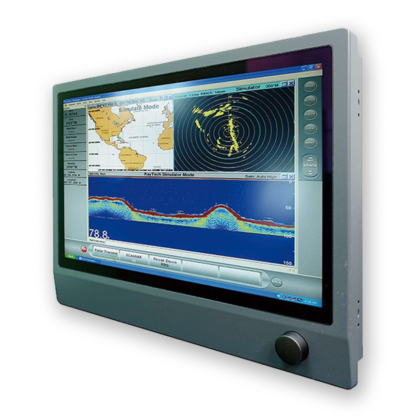

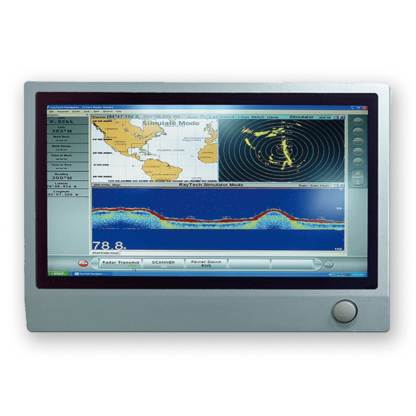

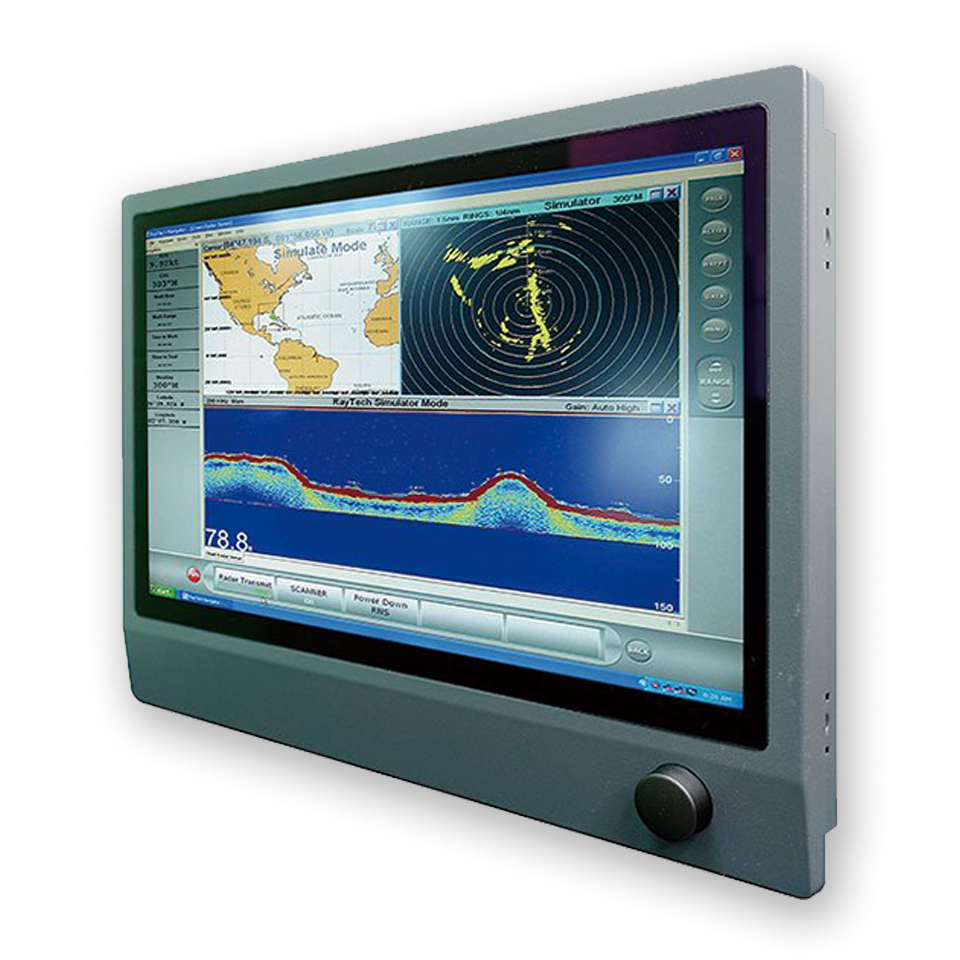

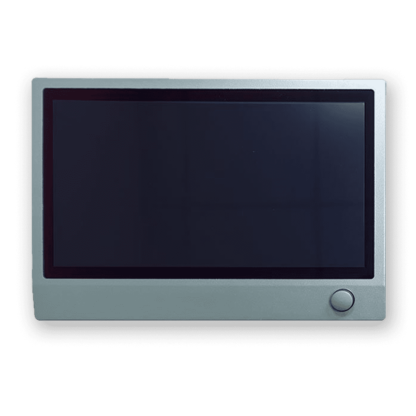

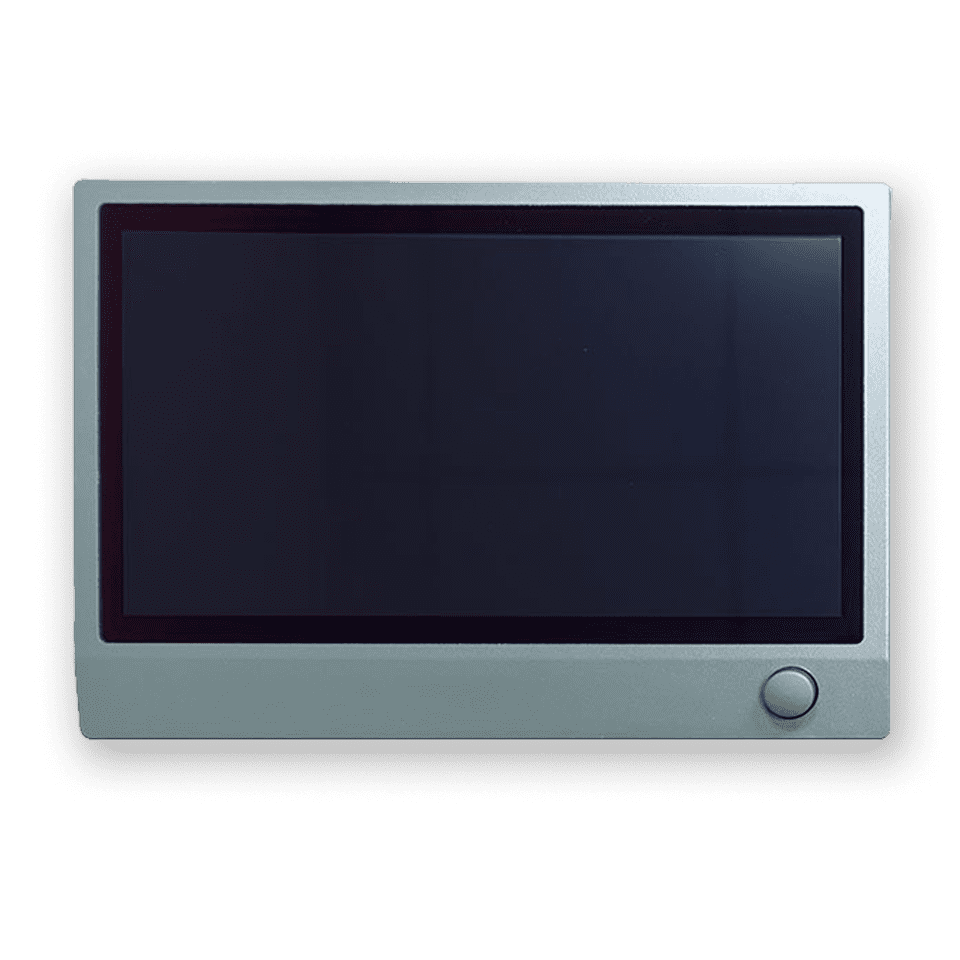

NPD1569 Sunlight Readable Marine Display

The NPD1569 is a Full HD marine display with a full range of video interface options to suit all marine craft.   Features include:

  • Full HD 1920 x 1080 resolution
  • Rotary and push knob (OSD MENU)
  • Wide Operating Temperature
  • Advanced Optical Bonding (AOT)
  • High Shock & Vibration Resistance
  • Projected Capacitive Multi-Touch Support
  • Full Flat Design
  • IP65 Facial Waterproof
NPD1569 Full HD Marine display

Model name NPD1569
Description 15.6” IP65 Sunlight Readable PCT Multi-Touch Marine Display
Size 15.6″
Display area 344.16(H) x 193.59(V)
Brightness 1800 cd/m²
Resolution Full HD 1920×1080
Aspect ratio 16:9
Contrast ratio 1200:1
Pixel pitch (mm) 0.17925(H) x 0.17925(V)
Pixel per inch (PPI) 141
Viewing angle 170° (H), 170° (V)
Display colors 16.2m
Response time (Typical) 25ms

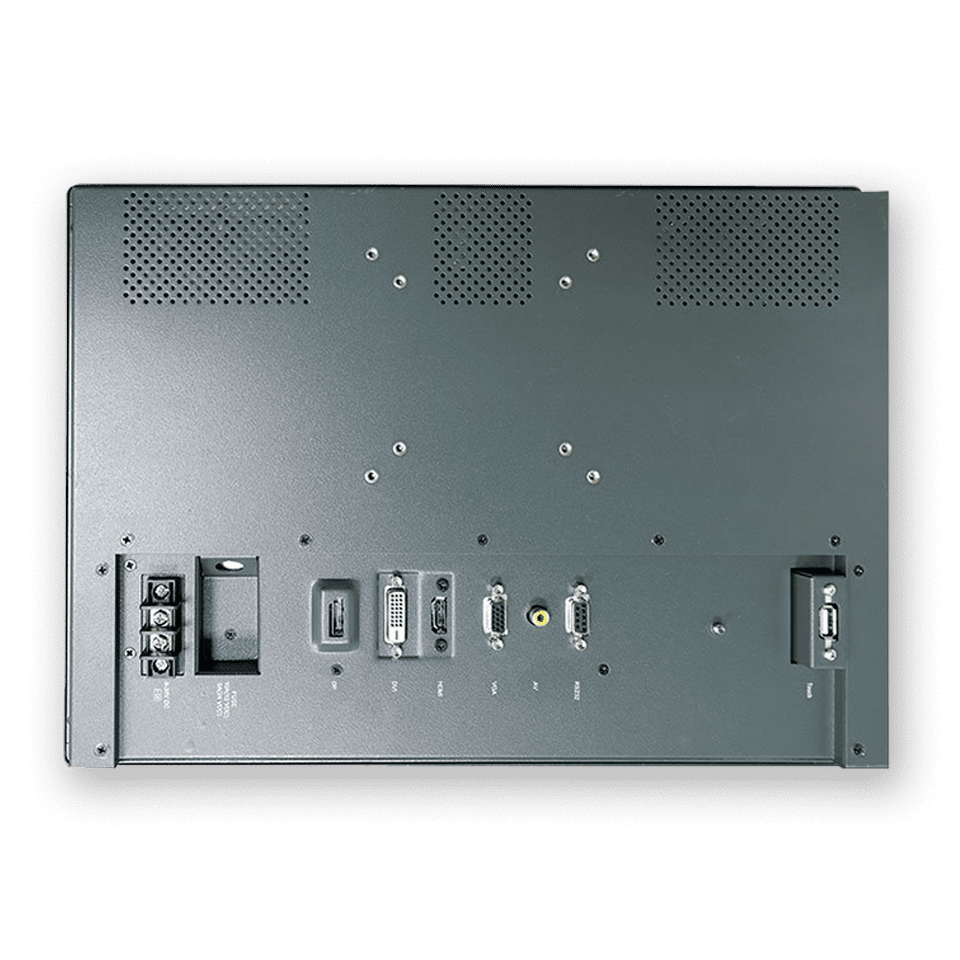

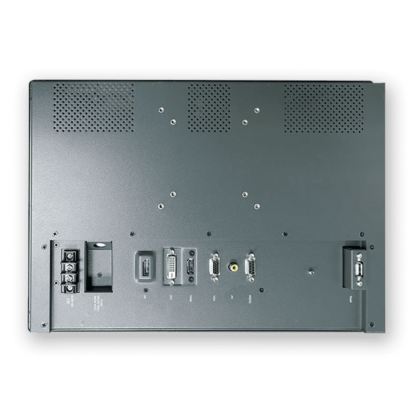

Video interface VGAx1, DVI-Dx1, HDMIx1, DPx1, Compositex1, RS232x1, USBx1
Input power DC input 9~36V
Power consumption 32w
Dimensions (mm) 393.9(W)x285(H)x61.2(D)
Weight (Net) 5.2kg
Mounting Panel (Flush) mount, VESA mount
Operating temperature -30˚C~80˚C (-22℉~176℉)
Storage temperature -30˚C~80˚C (-22℉~176℉)
Product approval CE/FCC
IP rating IP65 waterproof (facial) with console mounted
Construction Rugged SPCC Chassis
Multi Touch Projected Capacitive Multi-Touch Support
Marine Type Approval IEC 60945 BV marine and IACS-E10 approval
