NPD2706

NPD2706 27″ Full HD Marine display with a full range of video interface options to suit all marine craft.

SKU: ETE970317-1-1 Category:

Download PDF

Description

NPD2706 Multi-Touch Marine Display

The NPD2706 is a Full HD multi-touch marine display with a full range of video interface options to suit all marine craft.   Features include:

  • Full HD 1920 x 1080 resolution
  • Rotary and push knob (OSD MENU)
  • Wide Operating Temperature
  • Advanced Optical Bonding (AOT)
  • High Shock & Vibration Resistance
  • Projected Capacitive Multi-Touch Support
  • Full Flat Design
  • Isolation Power 9-36V DC Input
NPD2706 27″ Marine Display
NPD2706 27″ Marine Display
Model name NPD2706
Description 27” IP65 Sunlight Readable PCT Multi-Touch Marine Display
Size 27″
Display area 597.6(H) x 336.15(V)
Brightness 1200 cd/m²
Resolution Full HD 1920×1080
Aspect ratio 16:9
Contrast ratio 3600:1
Pixel pitch (mm) 0.311(H) x 0.311(V)
Pixel per inch (PPI) 81
Viewing angle 178° (H), 178° (V)
Display colors 16.7m
Response time (Typical) 12ms

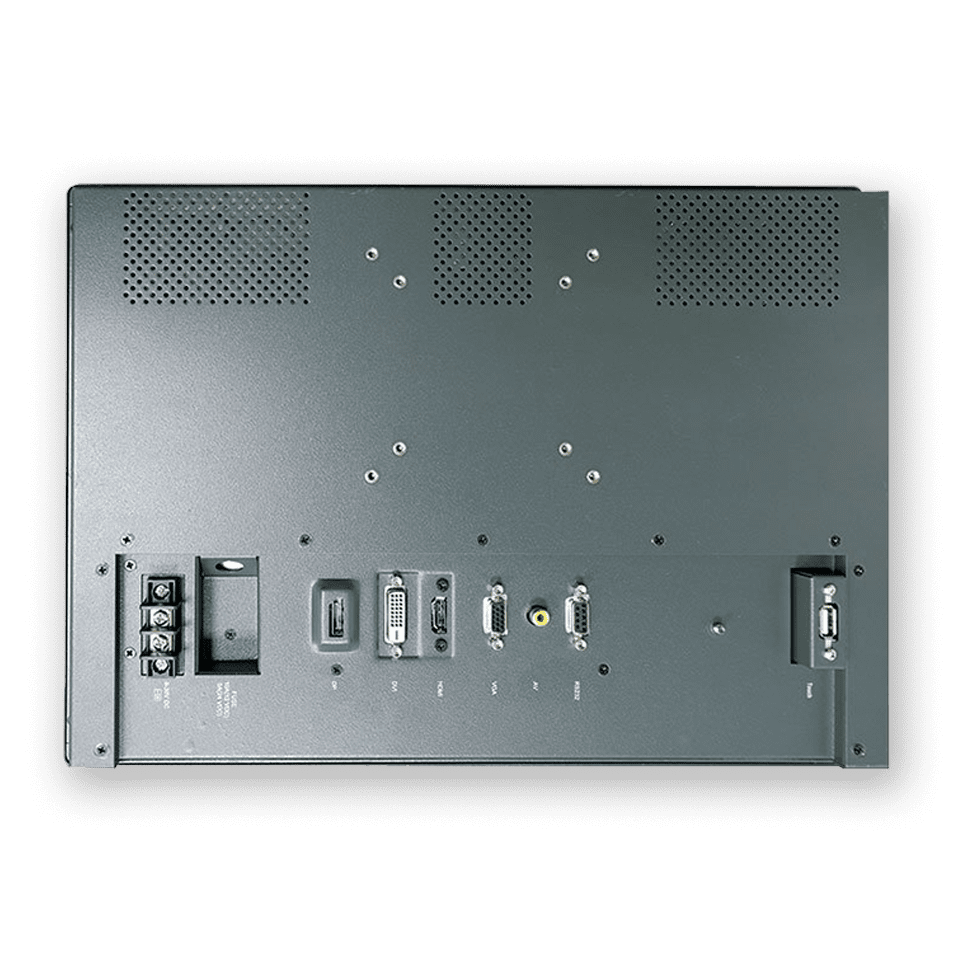

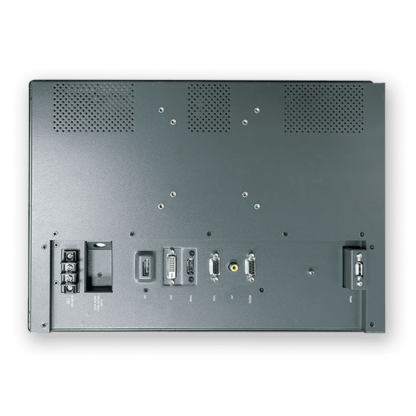

Video interface VGAx1, DVI-Dx1, HDMIx1, DPx1, Compositex1, RS232x1, USBx1
Input power DC input 9~36V
Power consumption 62w
Dimensions (mm) 660(W)x445(H)x67(D)
Weight (Net) 12.5kg
Mounting Panel (Flush) mount, VESA mount
Operating temperature -10˚C~50˚C (14℉~122℉)
Storage temperature -20˚C~70˚C (-4℉~158℉)
Product approval CE/FCC
IP rating IP65 waterproof (facial) with console mounted
Construction Rugged SPCC Chassis
Optional □Glass □Resistive Touch □PCT Touch
Marine Type Approval IEC 60945 BV marine and IACS-E10 approval

See our other sunlight readable marine displays – marine-displays
