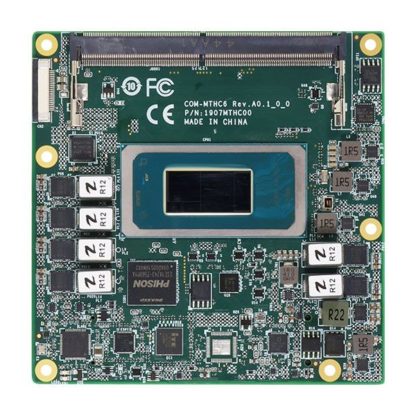

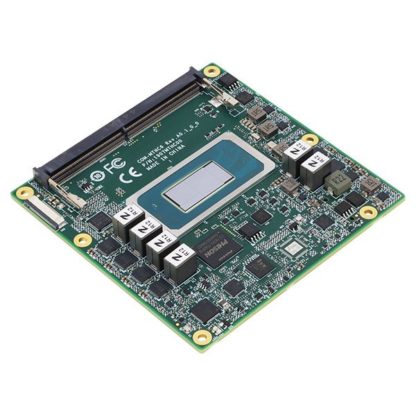

The world’s only COM Express Type 6 module available with 45W Intel® Core™ Ultra CPUs, AAEON’s COM-MTHC6 opens the door to unprecedented performance, with 70% faster generative AI performance, twice the graphics capabilities, and support for up to eight expansion modules. The module is not only built to handle intensive computing workloads, but also maximize performance under strenuous conditions, able to operate within extraordinarily wide power input ranges.
Powered by Intel® Core™ Ultra Processors
The COM-MTHC6 supports up to 45W CPUs from the Intel® Core™ Ultra Processor family (formerly Meteor Lake H Series), utilizing the integrated architecture to combine CPU, GPU, and NPU into one high-performance, low-power platform.
AI Software Development Kit
AAEON’s AI Software Development Kit makes the route to deployment easier, allowing for one-click installation of the Intel® Distribution of OpenVINO™ Toolkit, allowing users to easily verify NPU functionality for faster model development, refinement, and deployment.
Support for Eight PCIe Devices
With one eight-lane and two four-lane PEG 4.0 slots alongside four PCIe 4.0 and an additional standard PCIe slot, the COM-MTHC6 is capable of accommodating multiple high-performance GPUs, capture cards and storage modules, with the additional option of NVMe SSD preinstallation.
Wide Voltage, Industrial-Grade Reliability
Built to bring high-level edge AI functionality to across harsh deployment scenarios like factories and roadside units, the COM-MTHC6 keeps mission-critical data safe with a 9V to 16V power input range, even when relying on fluctuating power sources.
COM-MTHC6-A10-0001
System
Form Factor
COM Express Compact Size, Type 6
CPU
Intel® Core™ Ultra 9 Processor 185H (16C/22T, up to 5.1 GHz, 45W)
Chipset
Integrated with Intel® SoC
Memory
DDR5 5600MHz Dual Channel SODIMM x 2, non-ECC, up to 96GB
Onboard Storage
NVMe, up to 256GB, via last PEG [x4] bus (Option)
BIOS
AMI UEFI
Wake on LAN
Yes
Watchdog Timer
255 Levels
Dimension
3.75″ x 3.75″ (95mm x 95mm)
Security
fTPM / dTPM (default)
Power
Power Requirement
+9V-16V and +5VSB for ATX, +9V-16V for AT
Power Type
AT/ATX
Power Consumption (Typical)
Intel® Core™ Ultra 9 Processor 185H, 9.13A@+12V
Display
Graphics Controller
Intel® Arc™ graphics
Video Output
4 Simultaneous Displays:
LVDS: up to 1920 x 1080 (default) / eDP: up to 3840 x 2160, switch by BOM
DDI 1: DP, up to 3840 x 2160
DDI 2: DP, up to 3840 x 2160
DDI 3: DP, up to 3840 x 2160 , co-lay with VGA, auto switch
VGA: up to 1920 x 1080, co-lay with DDI 3, auto switch
I/O
Ethernet
Intel® Ethernet Controller I226, 2.5GbE x 1
Audio
High Definition Audio Interface
USB Port
USB 2.0 x 8, USB 3.2 Gen 2 x 4
Serial Port
2-Wire UART x 2 (Tx/Rx)
HDD Interface
SATA 6.0Gbps x 2
Expansion
PEG 4.0 [x8] + [x4] + [x4],last PEG [x4] option to be onboard NVMe SSD
PCIe 4.0 [x1] x 4 + PCIe [x4]
MIPI CSI x 2
GPIO
8-bit
SMBus/I2C
I2C x 1, from EC (default) or CPU, switch by BIOS
SMBus x 1, from CPU
Environment
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature
-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
EMC
CE/FCC Class A
OS Support
Windows® 11 (64-bit)
Linux Ubuntu 24.04/Kernel 6.8
